Product Specification
|
model
|
CBY-5N
|
|
Capacity:
|
KG
|
5000
|
|
Fork Width
|
MM
|
550/685
|
|
Fork Length
|
MM
|
1150/1220
|
|
Single Fork Width(Width*Thickness)
|
MM
|
180*60
|
|
Max,lifting height
|
MM
|
195
|
185
|
|
Lowered fork height
|
MM
|
85
|
75
|
|
Loaded Wheel
|
MM
|
180*50
|
|
Front Wheel
|
|
Single wheel(80*93)/ double wheels
|
|
Material of wheel
|
|
Nylon/Iron
|
|
Net Weight
|
KG
|
150/170
|
|
Packing Qty(20 feet container)
|
SETS
|
120(fork width 550MM or less)
|
96(fork width 685MM)
|

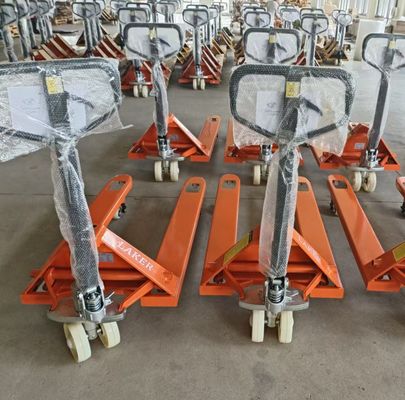

Product description
Highly balanced reinforced frame and pallet fork
High quality integrated casting oil cylinder
Oil cylinder with constant flow valve ensures balanced down of goods in heavy load
Integrated casting frame, double front wheels with strong loading capacity
characteristics
1.High-strength material
Made of high-quality steel, with high strength and durability, able to withstand heavy loads. 2.Surface treatment
anti-rust treatment on the surface to extend the service life.
3.Easy installation
reasonable design, easy installation, suitable for various types of forklift.
4.High safety
Through strict quality testing, to ensure the safety of use.
5.Wide range of application
suitable for a variety of working environments, especially the handling of long items.
