Product Description
Mobile hydraulic ramps are widely used in gearless platform and flow loading place, it is the loading aids which is used in conjunction with the truck. With this equipment, forklift can drive into the car for mass production.
Product Parameter
| Model |
DCQY8-0.8 |
| Capacity |
8000kg |
| Slope Length(m) |
7.0 |
| Platform Length(m) |
2.2 |
| Lip Plate Length(m) |
0.3 |
|
Guide Plate Length(m)
|
1.0 |
|
Overall Length(m)
|
10.5 |
|
Net Width(m)
|
2 |
|
Overall Width(m)
|
2.1 |
|
Min. Height(m)
|
1.0 |
|
Adjustable Height(m)
|
0.8 |
|
Max Height(m)
|
1.8 |
Product Features
1.Anti-skid deck and beveled toe-guard great increase the safe handling of each load.
2.Extra structural steel support enbles the lift to withstand impact loading, concentrated wheel loading.
3.Off-centered loading, and high rollover loads.
4.Easily operated with hydraulic and eectricity power.
5.Safety guaranteed:safety support strut ensure safe when people doing maintain service under the ramp.
6.Anti-foot pinched plate on both sides. Anti-skid deck.
7.can be modified or customized to meet the specifid requirements of your particular application, And each lift meets or exceeds the requirements of all applicable national safety codes.
8.Some spare parts such as oil seal will be provided free of charge for containerload quantity(2-3pcs). Spare parts will be provided at a very reasonable price after the warranty period.
Product Advantage
It can realize the rapid and safety goods loading with single operation, do not need power supply. You can reduce the labor intensity and improve the working efficiency, speed up the material circulation, to obtain the greater economic benefits.

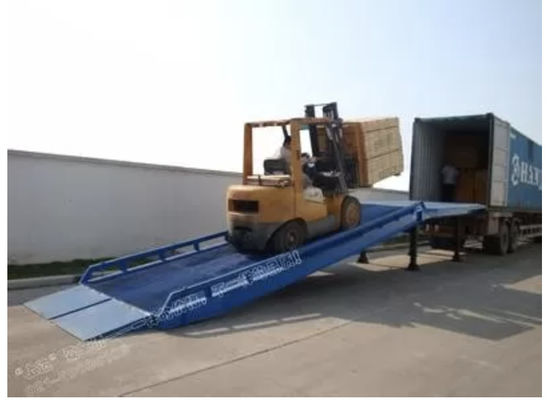

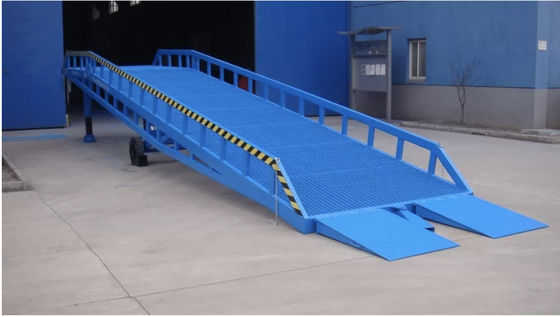

Product Display
FAQ
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
