Lightweight 120kg EP F4 Lithium Pallet Truck, Custom Fork Size For E-commerce Warehouse Logistics Handling

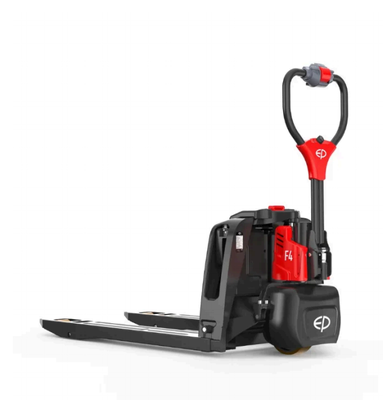

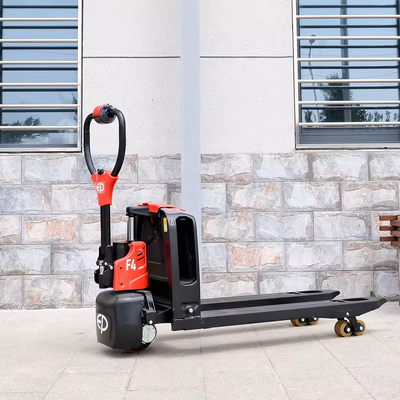

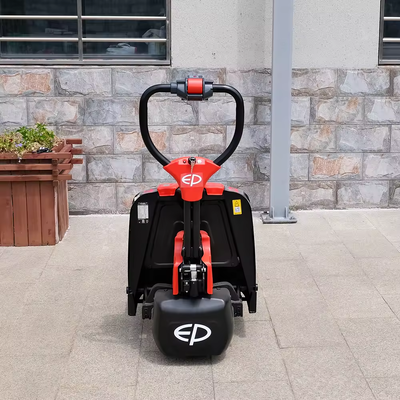

Imagem Grande : Lightweight 120kg EP F4 Lithium Pallet Truck, Custom Fork Size For E-commerce Warehouse Logistics Handling

Detalhes do produto:

Lugar de origem:	China
Marca:	EP
Certificação:	ISO
Número do modelo:	F4

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociável
Preço:	Negociável
Detalhes da embalagem:	Caixa
Tempo de entrega:	3-7 dias úteis após confirmação do pedido e depósito
Termos de pagamento:	L/C, T/T, Western Union
Habilidade da fonte:	4000 pcs/mês

Contato

Descrição de produto detalhada

Dirigir:	elétrico	Capacidade nominal:	1500KG
Pneus:	Poliuretano	Dimensões do garfo:	55/150/1150mm
Comprimento total:	1550 mm	Largura total:	590 (695)mm
Elevador:	105mm

1.Common Warehouse Pain Points

Most conventional lead-acid electric pallet trucks bring persistent troubles to warehouses across various industries:

❌ Heavy lead-acid batteries result in bulky truck bodies that struggle to turn smoothly within narrow rack aisles;

❌ Single-battery setup requires frequent downtime for charging and cuts down loading & unloading efficiency;

❌ Poor chassis stability leads to cargo tipping risks when handling irregular carton pallets;

❌ Fixed fork dimensions fail to fit diverse sizes of e-commerce pallets.

Field-proven in Malaysia, our EP F4 lithium pallet truck solves all these pain points comprehensively.

2.Real Case: Cross-border E-commerce Warehouse in Kuala Lumpur, Malaysia

Project Background

A leading cross-border logistics and warehousing operator in Kuala Lumpur runs a 12,000 m² modern sorting warehouse focusing on order fulfillment for Shopee and Amazon local markets. Equipped with compact rack layouts, most aisle widths are less than 2100 mm. Previously used lead-acid pallet trucks are bulky and hard to maneuver in tight spaces. Their heavy weight increases operators’ workload, while one single battery only supports 4–5 working hours, raising recurring operational costs from frequent battery replacements. After on-site trial testing, the customer placed bulk orders for EP F4 1.5-ton electric pallet trucks.

Reasons for Choosing EP F4

Weighs only 120 kg with a 400 mm short fork nose for excellent flexibility in narrow rack aisles.
Dual battery slots support 1 to 4 sets of 20Ah lithium batteries. Quick-swap batteries enable non-stop all-day operation; each battery weighs merely 5 kg for easy manual replacement.
Optional stabilizer wheels can be factory-fitted or retrofitted later to effectively prevent tipping during transport of irregular bulk cargo.
Multiple fork lengths from 800 mm to 1500 mm available to match Malaysian domestic and EU standard pallets.

Application Results

After 14 months of intensive daily operation, the breakdown rate falls by 70% compared with old lead-acid models, handling efficiency rises by 35%, and annual expenses on spare parts and battery replacement drop by 62%. EP F4 has become the site’s standard equipment and is repeatedly ordered for new branch warehouses in Johor and Penang.

Customer Feedback:
We have deployed F4 trucks at our main Kuala Lumpur warehouse for over a year. No frame rust or hydraulic leakage occurs under Malaysia’s hot and humid climate. Its superb narrow-aisle maneuverability and swappable lithium battery design greatly reduce operating costs, and we will continue purchasing for our new warehouses.

3. Five Core Advantages

l Dual-slot removable lithium battery system: Optional 1/2/3/4 pieces of 20Ah lithium batteries for instant hot swap without long charging downtime, ideal for full-shift intensive e-commerce work; single battery weighs just 5kg.

l Ultra-light compact structure: Short 400mm fork tip and total weight of 120kg for flexible operation in small supermarkets and compact storage spaces.

l Retrofittable anti-tilt stabilizer wheels: Optional support casters available ex-factory or as aftermarket upgrade to secure oversized and irregular loads and meet local industrial safety standards.

l Customizable fork sizes: Fork lengths ranging from 800mm to 1500mm plus two overall body widths (590mm / 695mm) to fit global pallet specifications.

l Reliable original configuration: Equipped with electromagnetic brake, low 74dB(A) working noise, and maximum 16% empty-load gradeability for stable travel over warehouse ramps and uneven concrete floors.

4.Conventional Lead-acid Truck VS EP F4 Lithium Pallet Truck

Traditional Lead-acid Pallet Truck	EP F4 Lithium Pallet Truck
Bulky body with poor flexibility in narrow aisles	Only 120kg weight, highly flexible in narrow spaces
Fixed single battery, long downtime for charging	Quick-swap multi lithium batteries for non-stop operation
Prone to rust under hot & humid tropical conditions	Powder-coated frame resists humid Malaysian weather
Fixed fork size without customization	Fully customizable fork dimensions
High expenditure on maintenance & battery replacement	Low failure rate to cut annual maintenance cost

Lightweight 120kg EP F4 Lithium Pallet Truck, Custom Fork Size For E-commerce Warehouse Logistics Handling 1

5. Industry Trend & Purchase Guidance

With continuous expansion of e-commerce and industrial warehouses across Southeast Asia, Malaysia, Thailand and Indonesia have upgraded workplace safety regulations. Bulky lead-acid pallet trucks with high maintenance costs are being phased out, while lightweight lithium-powered models hve become the mainstream choice with growing regional demand.
EP F4 is in stock for prompt delivery. We support OEM and custom fork dimensions with tiered pricing for bulk orders. Submit your aisle width and pallet specifications via inquiry, and we will provide customized quotation and selection plan within 24 hours.
